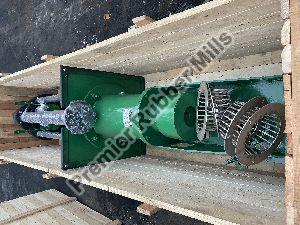

Galighar Type Vertical Slurry Pump

Casing - Casings are made of cast high chrome alloy steel with rubber or metal lined option1-year-warranty

Impeller - Double suction impellers create low axial bearing loads, increasing bearing life. Impellers are available in rubber-lined and metal-lined option.

Lower Strainer - The lower strainers keep large foreign material entering the casing

Application - The rugged vertical slurry sump pump with either hard metal or rubber covering are suitable for the following applications:

• Minerals processing
• Coal preparation
• Industrial sand and Aggregate
• Power Plants
• Chemical processing
• Effluent handling

Features & Benefits

• Cantilever design without submerged bearings or shaft seal
• High capacity double suction design
• Agitator option keeps solids in suspension
• Wear parts are available in variety of different material
• Optional recessed impeller for oversized material
• Open and semi-open impeller available
• SPR models features full rubber covering for corrosion resistance

2 1⁄2” Galighar Type Rubber Lined Vertical Pump.

Discharge: 30 M3/Hr.

Head: 20 Meter

Pedestal: 36” or 48" or 60" with Rubber Lined

M.O.C. of Casing: Rubber Moulded Casing Plate & Impeller

Method of Mounting: Motor on the top of Sump Pump

Motor Required: 15 HP
